From CAD to Track – Engineering Scalextric Cars for Performance and Production
Translating Engineering Precision into Scalable Consumer Products
Bringing a consumer product to market at speed requires more than great design. It demands a disciplined engineering approach that ensures concepts can be translated into manufacturable, cost-effective and high-performing products at scale.
For brands operating in competitive consumer markets, the challenge is clear: how do you retain performance, visual appeal and brand quality while meeting the realities of production, tooling and cost constraints?

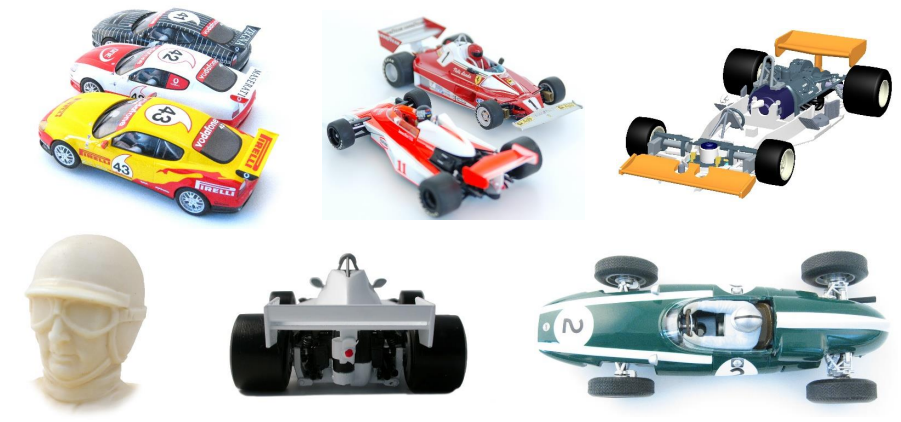

Cambridge Design Technology (CDT) partnered with Hornby to support the development of Scalextric cars — a product where performance, precision and aesthetics must come together seamlessly. This project highlights how CDT applies engineering rigour typically associated with medical and industrial sectors to high-volume consumer products.
From Concept to Production-Ready Design
The development of Scalextric cars begins with lots of research material — capturing the visual identity, proportions and detailing that define each model.
However, for a product destined for volume manufacture, design intent must quickly evolve into engineering reality.
CDT worked from historical photographs and measurements taken from real cars to create initial CAD data through to fully resolved, production-ready components. This required careful consideration of part geometry, scale details (when to use it and when to compromise not using it), assembly constraints and manufacturing processes to ensure that the final design could be produced efficiently and consistently.
The transition from concept to production is where many products encounter delays or compromises. CDT’s integrated approach ensures that design and engineering progress in parallel, reducing risk and accelerating development timelines.
Tooling Directly from CAD: Speed and Accuracy
A key element of this project was the development of tooling directly from CAD data.
By maintaining a fully digital workflow, CDT ensured that design intent was accurately translated into physical tooling, minimising interpretation errors and reducing lead times. This approach enables faster iteration and supports a more efficient path from design freeze to production.
For consumer products, where time-to-market is critical, this level of integration between design and tooling provides a significant competitive advantage.
3D Printing for Agile Development
To support development and early production phases, CDT utilised 3d printing to verify not only the fit and function but also to assess the design accuracy in real3D and perspective against the research material.
This approach offers several advantages. It allows for rapid part manufacture, reduced upfront costs and the flexibility to refine designs before committing to high-volume production tooling.
For clients like Hornby, this means the ability to validate form, fit and function early in the process, while maintaining the agility to respond to design changes or adapt designs to include detailing for specific cars at historically significant races or racetracks.
Designing for Repeatability, Cost Efficiency and Scale
Consumer products must perform not just once, but thousands — often millions — of times in production.
CDT engineered the Scalextric car components with repeatability and manufacturability at the forefront. Every detail, from material selection to part geometry, was optimised to ensure consistent quality across production runs while controlling costs.
This required balancing multiple factors, including:
- maintaining tight tolerances where performance demands it
- simplifying geometry where possible to improve manufacturability
- ensuring components assemble reliably at scale
- Using different material such a flexible elastomers for fine protruding detail such as wing mirrors
By addressing these considerations early in the design process, CDT helped ensure a smooth transition into production.
Translating Performance and Aesthetics into Manufacturable Products
Scalextric cars are not just functional products — they are designed to capture the excitement and authenticity of real vehicles.
CDT worked to ensure that aesthetic details were preserved while remaining compatible with manufacturing constraints. This included refining surface quality, managing part splits and ensuring that visual features could be reproduced consistently through the chosen production processes.
At the same time, performance characteristics such as weight distribution, alignment and component integration were engineered to deliver reliable on-track behaviour.
This combination of form and function is critical in consumer products, where brand perception and user experience are closely linked.
Engineering Expertise Across Sectors
This project demonstrates how Cambridge Design Technology applies the same engineering discipline used in medical and industrial sectors to consumer product development.
By combining Industrial Design and Development with robust Mechanical Design expertise, CDT supports clients in delivering products that are not only visually compelling but also engineered for efficient manufacture and long-term performance.
Their ability to move seamlessly from concept through to production makes them a valuable partner for organisations looking to scale innovative products and with confidence.
